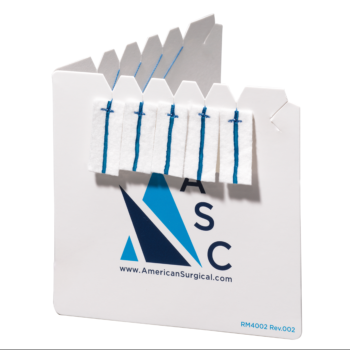

Ray-Cot® Neurosurgical Pattie
Ray-Cot® is an improved version of the standard rayon neurosurgical pattie with superior strength and performance.
Ray-Cot® neurosurgical patties utilize a special rayon material that has superior pliability and absorption, while providing softness and protection to delicate tissue. The Ray-Cot® material is shown to be up to 2x stronger than the leading competitor and demonstrates up to 12% greater absorption by weight per absorption testing.
With clean precision cuts providing smooth edges reducing loose fibers and a single barium line allowing superior flexibility and pliability. Ray-Cot® neuro patties are a staple in surgical suites.
- 12% greater absorbency and 2x stronger than the leading competitor
- Single barium line allows for superior pliability and softness
- Smooth precise edges reducing the potential for loose fibers
- Thinner locator string for improved visibility
Sizes & Product Codes
Single-Use-Perforators are available in eight versions: four different diameters each for thin and thick bone areas.
- All evo_DRILLs are 100% “Made in Germany”
- Each evo_DRILL is 100% end tested for its functionality before packaging
- All evo_DRILLs are characterized by absolute precision and safety
- All evo_DRILLs are infection free due to the gamma sterilization process
NeuroDrain EXTERNAL SURGICAL DRAINAGE SILSUC
External Surgical Drainage system in silicone, with closed circuit to the environment and anti-reflux valve on drainage catheter
- Catheter multi-drilled with 10,7 and 4.5mm wide
- Valve Anti-reflux to prevent pneumoencephalus
- Drainage by suction or gravity
NeuroDrain is produced in two models: Silsuc-R with suction reservoir in silicone, and Silsuc-B with collection bag for gravitational drainage.

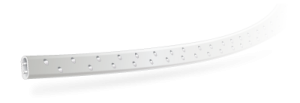

Silicone Drain
Radiopaque, multi-perforated with internal structure to prevent obstruction and diminution of drainage.
Easy Coupling
Between drain and catheter allowing a non-traumatic extraction of the drain.
Unidirectional Valve
Prevents pneumocephalus and infections caused by reflux of the drained liquid.
Angled Introducer
In stainless steel with carefully sharpened edge and perfect diameter for the drain passage
Reservoir in silicone
With 200 or 100ml, appropriate for suction drainage in craniotomies, spine surgeries or procedures that require prolonged drainage.
Drainage Bag
With 700ml, appropriate for gravitational drainage and specially indicated for subdural collections as hematomas, hygromas or emphysema.
External Ventricular Drainage
External Ventricular Drainage system indicated to reduce and temporality control the (ICP) pressure, by cerebrospinal fluid drainage.
The system gathers all the components required for a secure and efficient drainage. The mobile burette allows better precision in pressure control and measurement of drained volume.
Components
1 – Pressure Scale
- Pressure scale in mm Hg and H2O cm, mobile graded burette for easy and safe adjustment of the ICP.
2 – Filter
- Hydrophobic antimicrobial resistant to wetting, preventing drainage interruption due to filter blockage. Accompanies clamp to be closed when it the needs to be temporarily place horizontally.
3 – Patient’s Stopcock
- With output for ICP monitoring
4 – Luer Connection
- Male and female connectors enable the replacement of drainage bag
5 – Drainage Bag
- 700ml and graduated each 50mL, with pressure scale in mmHg and cmH2O
6 – Sampling Site
- For emptying the bag without the use of needle, preventing leaks and contamination with clamp to avoid leaking
7 – Louer
8 – Slide Clamp for flow interruption between patient and system
9 – Patient’s Stopcock
10 – Y Valve
- For sample collection or fluid injection without the use of needle, preventing leaks and contamination
11 – Anti-reflux Valve
- Prevents the return of CSF

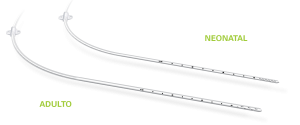

- CATHETERS
- Made of transparent silicone with radiopaque fillet, marked each 01cm and with oblong orifices preventing obstruction.
BURETTE
Adult size with 75ml or 100ml and neonatal with 30ml capacity. A Clamp to avoid wetting the filter, when the system is place horizontally.

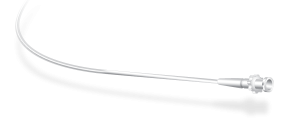

Connection Protection
Prevents unintentional disconnection and kinking of the catheter at connection with the tubing.
Lumbar peritoneal shunt
The Lumbar-peritoneal Shunt is indicated for intracranial pressure control, placed from the lumbar subarachnoid space (spinal) to the peritoneal cavity. It can be used for diagnosis, evaluation or treatment of the communicant normal pressure hydrocephalus, for monitoring persistent cerebral spinal fluid fistulas, cranial protuberance, sub occipital decompression and also in cases of transitory defective cerebral spinal fluid absorption (post meningitis or post hemorrhagic hydrocephalus).
- Available in high, medium, and low pressure
- Flexible catheter with silicone tip multiperforated
- Introduction by Tuohy needle with depth marking every 1cm
PERITONIAL CATHETER WITH RESERVOIR
Silicone radiopaque, with outer diameter 1.6mm, with markings every 5 cm to guide the insertion depth. connection protector to prevent unintentional disconnection.
CATHETER LUMBAR
Made in radiopaque silicone, with 1.6mm outer diameter, with markings every 5 cm to guide the insertion depth. Connection protector to prevent unintentional disconnection.
TROCAR
Tuohy needle 14G stainless steel marking each 1cm for insertion depth control. Wire flexible guide wire to facilitate catheter insertion.
External Ventricular Drainage Economic
External Ventricular Drainage system indicated for the reduction and temporary control of intracranial pressure, by cerebrospinal fluid drainage.
- Economic System, with advantageous cost
- Closed drainage system
- It has all the components for safe drainage

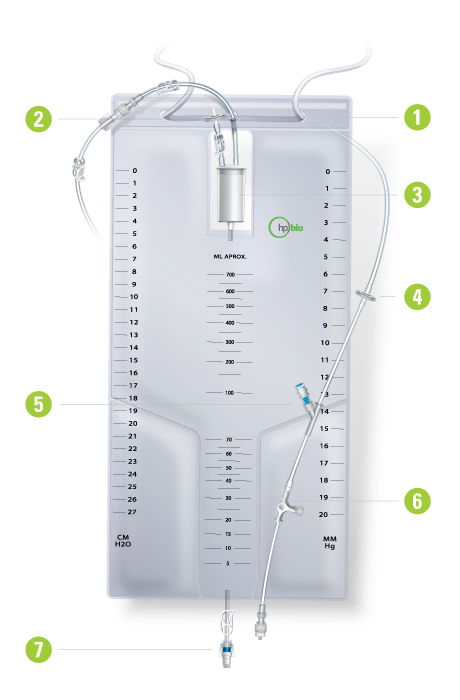

Components
Drainage Bag
With 700ml and graduated each 100ml, with pressure scale in mmHg and cmH2O. The initial graduation in 5ml enables higher accuracy in drainage rate
Luer Connection
Male and female connectors enable the change of drainage bag.
Drip Chamber
- Transparent, with antimicrobial vent.
Anti-reflux Valve
- Prevents the return of CSF.
Valve Y
- For sample collection or fluid injection without the use of needle, preventing leaks and contamination.
Stopcock
- With output for ICP monitoring.
Sampling Site
- For emptying the bag without the use of needle, preventing leaks and contamination.
External Lumbar drainage
The External Drainage System is indicated for the reduction and temporary control of intracranial pressure (ICP) through the drainage of cerebrospinal fluid (CSF) from lumbar subarachnoid spaces into an external collector bag.
- System with mobile burete
- Flexible catheter in silicone with multiperforated tip
- Introduction with a Tuohy needle that is depth marking every 1cm
Pressure Scale
- Pressure scale in mmHg and cmH2O, mobile graded burette for more precise control on the drainage volume.
Filter
- Hydrophobic antimicrobial resistant to wetting, preventing interruption of the drainage by place temporarily filter blockage. Accompanies clamp to be closed when it is necessary to position the system horizontally temporarily.
Patient’s Stopcock
- With output for ICP monitoring
Luer-Connection
- Male and female connectors enable the drainage bag replacement
Drainage Bag
- With 700ml and graduated each 50mL.
Sampling Site
- For emptying the bag without the use of needle, preventing leaks and contamination and with clamp to avoid leaking
Luer
Slide clamp
- for flow interruption
Patient’s Stopcock
Y Valve
- For sample collection or fluid injection without the use of needle, preventing leaks and contamination
Anti-reflux Valve
- Prevents the return of CSF

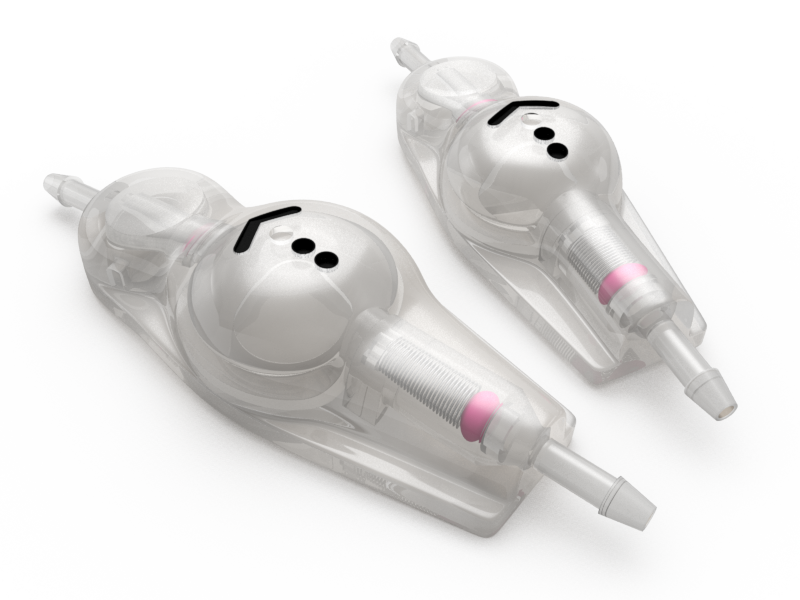

SPHERA DUO HYDROCEPHALUS SHUNT SYSTEM
Sphera Duo valves were developed for a precise control of cerebral intraventricular pressure. The Adult, Infantile and Neonatal Plus sizes design present low profile of implant and flexible body with anatomical shape to contour the curvature of the cranium.
The valves are made of transparent medical grade silicone with internal structure in polysulfone. They have pumpable central reservoir with needle guard that protects against perforations on punctioning or sampling procedures.
- Body in silicone
- “Ball in Cone” mechanism made of ruby
- Compatible with CT and MRI
Components
1 Input connector
2 Body in silicone
3 Pumping and punctioning chamber
4 Radiopaque marker add flor pressure add flow direction
5 Pressure control valve (ball, seat and spring)
6 Polysulfone base
7 Pressure control valve (ball, seat and spring)
8 Output connector
PRESSURE / FLOW
The graphic represents average rates.
Consider a range + 1,5 cmH2O.
