Cardio-vascular

RAPID EXCHANGE PTCA BALLOONS
IKAZUCHI ZERO™
Semi-Compliant PTCA Balloon

Engineered to facilitate the crossing including for complex lesions
• Low profile
• Minimized entry and balloon profile with optimized pushability and tip flexibility
• TR2 hydrophilic coating improves lubricity, thereby reducing resistance

• Guidewire maximum diameter : 0.014″
• Nominal Pressure : 6 atm
• Rated Burst Pressure : 14 atm
• Effective length : 146 cm
• Units per package: 1
• Accessories: flushing needle and rewrap tool included

RAIDEN3
Non-Compliant PTCA Balloon

High Pressure balloon for confidence in preserving post-dilatation accuracy:
• Powerful 22 atm RBP
• Low compliance facilitates post-dilatation accuracy
• Engineered for strength and puncture resistance
• Higher pressure facilitates stent tacking

Guidewire maximum diameter : 0.014″
• Nominal Pressure : 12 atm
• Rated Burst Pressure : 22 atm
• Effective length : 146 cm
• Units per package: 1
• Accessories: flushing needle and rewrap tool included

MYNX CONTROL™ Vascular Closure Device

MYNX CONTROL VCD integrates active extravascular sealing and resorbability properties with a next-generation delivery system to maximize predictability, safety, and ease of use in sealing 5-7F femoral arterial access sites.
Featuring:
A next-generation deployment system designed for predictability and ease of use with a 2-button design to
simplify procedural steps
A sheath catch that is compatible with the procedural sheath
A tension indicator that provides visual confirmation of device position for proper sealant deployment
Available in 5F as well as 6/7F sizes
MYNX™ Family of Vascular Closure Devices has been clinically proven to reduce surgical
complications, expedite recovery, shorten hospital stays, and increase patient comfort

MYNXGRIP™ Vascular Closure Device

Built on the proven Mynx platform, the MYNXGRIP™ Vascular Closure Device offers the security of
mechanical closure combined with the safety of an extravascular sealant. The MYNXGRIP™ Vascular Closure Device
offers a patient-friendly closure option with no sutures, clamping, or metal implants and dissolves within 30 days
leaving nothing behind but a healed artery.

EXOSEAL™ Vascular Closure Device

The EXOSEAL™ Vascular Closure Device is a sterile, single use device consisting of a Poly Glycolic Acid (PGA) Plug
in combination with a Delivery Shaft. The Plug is fully enclosed within the Delivery Shaft. Running the length of
the Delivery Shaft is an Indicator system that provides a means of positioning the Plug, relative to the vessel
wall. When the Plug is in the correct position the Delivery Shaft is retracted, depositing the Plug on top of the
arteriotomy site.

CSI’s FRENCH SIZE      CATALOGUE NUMBER     DESCRIPTION
5F                                  EX500CE EXOSEAL™ – to be used with a 5 F sheath introducer up to 12 cm
6F                                  EX600CE EXOSEAL™ – to be used with a 6 F sheath introducer up to 12 cm
7F                                  EX700CE EXOSEAL™ – to be used with a 7 F sheath introducer up to 12 cm

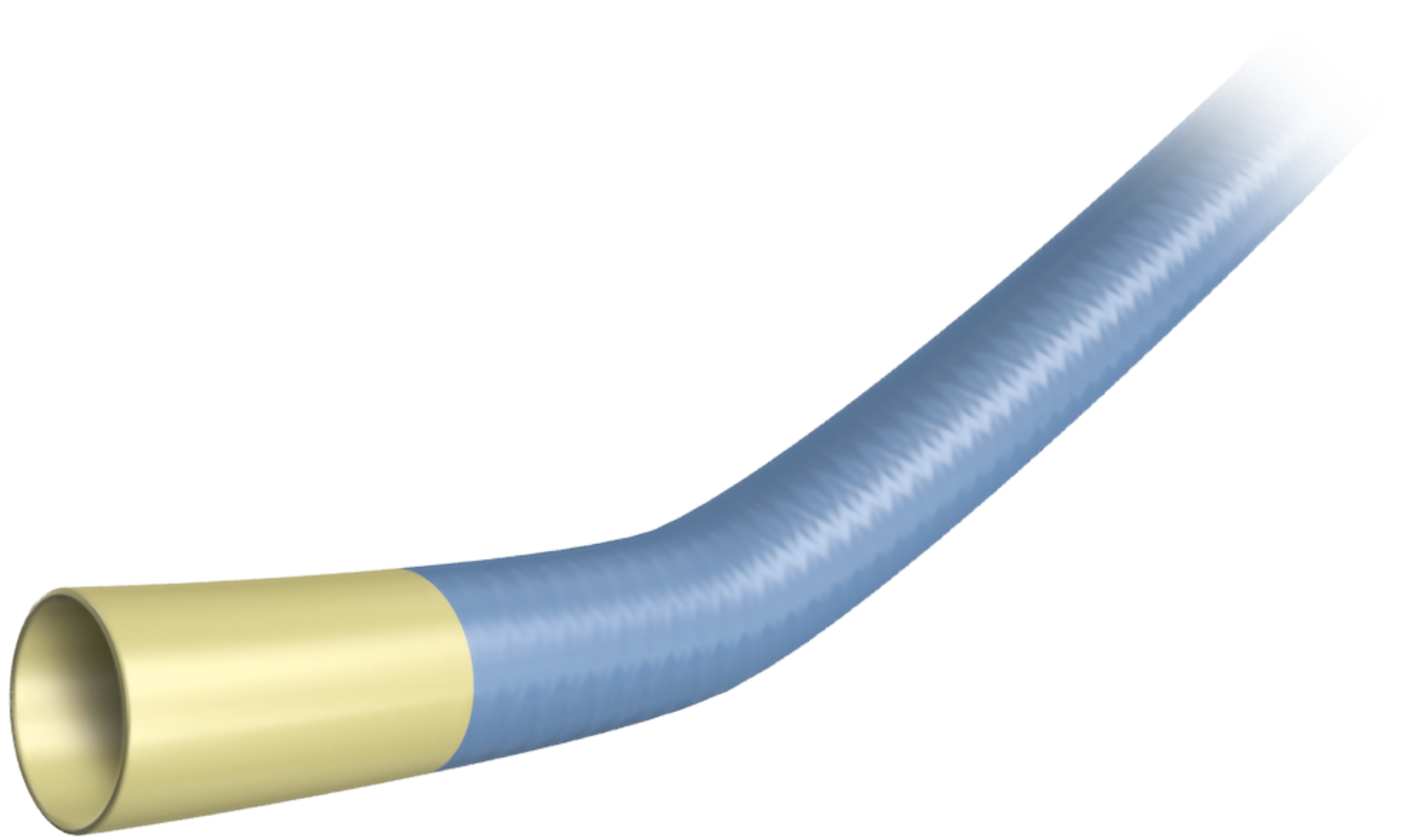

ADROIT™ Guiding Catheters

The ADROIT™ Guiding Catheter 6F, with a large .072”
inner diameter (ID), is designed to give you more space to
maneuver, with optimal back-up support. The result:
more options for treating a wide range of cases.
The ADROIT™ Guiding Catheter 5F is also available with a
.058” inner diameter (ID).
• .072” ID to improve device compatibility and provide
better visualization†
• Easier to perform kissing balloon technique
• Innovative hybrid braided wire technology enables
larger lumen with optimal back-up support
• PTFE lining provides lubricious lumen for smoother
delivery
• True lumen Technology ensures consistent ID from hub
to tip, for added confidence
• 5F to 6F platform
• Trans-radial shapes
• Extra Back-up shapes

VISTA BRITE TIP Guiding Catheters

The VISTA BRITE TIP™ Catheter range is a complete system
of large lumen guiding catheters that are optimized to
answer clinical needs. VISTA BRITE TIP™ Guiding Catheter
is available in a wide range of shapes and configurations,
including a complete line of guides to suit your special
case needs.
A highly radiopaque distal ultra-soft tip helps promote
safe atraumatic engagement and precise placement.
The Multi-segment Design and hybrid braiding provides
large inner diameters and high deliverability.
• True lumen Technology ensures consistent ID from hub
to tip, for added confidence
• PTFE lining provides lubricious lumen for smoother
delivery
• 5F to 9F platform
• Trans-radial shapes
• Extra Back-up shapes.

Long BRITE TIP Guiding Catheters

 Available in 6F .070” and .072” & 5F .056”
• Safe active back up support through deep seating
• Atraumatic ostial coaxial alignment by the excellent tip
conformability
• Superior tip visibility
• Atraumatic Long BRITE TIP™ Guiding Catheters
• Labeled as Long BRITE TIP™ in the tables of the order
numbers

WIZDOM™ Steerable Guidewires
• Moderate support wire
• Coating: PTFE/Dura-glide
• Distal Tip Radiopaque distal tip: 3 cm
• Units per Package: 5

ATW/ ATW Marker Wire
Moderate Support / Workhorse Wire
• Broad Transition One-Piece Core-wire (0.0076”) for enhanced linear control
• Flex-Joint bond maintains strength and flexibility of the distal core-wire transition
• Dura-glide proximal coating and distal PTFE sleeve provide enhanced lubricity
• Flexibility with support for modern Hi-Tech stents
• Available Tip configuration: Floppy
• ATW™ Marker Wire is an intermediate support wire for lesion measurement,
with 4 radiopaque markers spaced 10 mm apart
STABILIZER/ STABILIZER Marker Wire
Moderate Support / Workhorse Wire
Broad Transition One-Piece Core-wire (0.010”) for enhanced linear control
• Flex-Joint bond maintains strength and flexibility of the distal core-wire transition
• Dura-glide proximal coating and distal PTFE sleeve provide enhanced lubricity
• Balanced support and flexibility for greater guidewire demands
• Available Tip configuration: Super-soft, Soft
• Also available as Stabilizer™ Plus and Stabilizer™ XS and Stabilizer™ Marker Wire
• Stabilizer™ Marker Wire is an intermediate support wire for secure lesion
measurement with 6 equally distanced marker bands (15 mm)

SHINOBI™
Highly Stenosed Lesion Wire
• Broad Transition One-Piece Corewire (0.007”) for enhanced linear control
• Flex-Joint bond maintains strength and flexibility of the distal corewire transition
• Extended PTFE sleeve over tip provides superior lubricity
• Flexibility with support for modern applications
• Available Tip configuration: Floppy
SHINOBI™ Plus
Highly Stenosed Lesion Wire
• Broad Transition One-Piece Corewire (0.010”) for enhanced linear control
• Flex-Joint bond maintains strength and flexibility of the distal corewire transition
• Extended PTFE sleeve over tip provides superior lubricity
• Balanced support and flexibility for greater guidewire demands
• Available Tip configuration: Floppy

ANGIOGUARD™ RX Emboli Capture Guidewire System ANGIOGUARD™ RX EMBOLI CAPTURE GUIDEWIRE SYSTEM with its Rapid Exchange System is easy to use, providing optimal control while maintaining continuous blood flow.

Ease of use

Medium & Extra Support Wires – 0.014” compatible wire available in Medium & Extra support for lesion specific access and support of interventional devices

Good cross ability

– Easy to cross tortuous anatomies

 Rapid Exchange System

– Simplified deployment with peel away deployment sheath

– Easy capture of filter with Rapid Exchange capture sheath

– Single operator

– Fast procedure

– Enhanced wire control

ORDERING INFORMATION
• Guidewire length 180 cm
• .014″ Wire
• Guiding Catheter Compatibility: 8F
• Sheath Compatibility: 6F

RAIN Sheath™ Trans-radial Hydrophilic Thin-walled Introducer

Designed to reduce the risk of radial artery trauma and spasm.
ULTRA LOW PROFILE DESIGN
Same „6F in 5F“ concept as newer generation radial sheaths.
Outer diameter of the newer 6F sheath is the same as the older 5F sheath.
This concept applies to RAIN Sheath™ in the following sizes: 4F, 5F, 6F, 7F.
PROPRIETARY KINK RECOVERY TECHNOLOGY™:
Elastomeric properties enable RAIN sheath to maintain its atraumatic shape throughout
the procedure.
LUBRICIOUS HYDROPHILIC COATING
Facilitates smoother, easier insertion and removal.
HEXACUSPID HEMOSTASIS VALVE
Hexa-cuspid hemostasis valve. Designed to preserve hemostasis and reduce risk of
bleed-back

AVANTI™+ Catheter Sheath Introducer

For use in arterial and venous procedures requiring percutaneous introduction of
intravascular devices, the AVANTI™ + Introducer is a pioneer in catheter sheath
introducer technology. Featuring a unique Slix Valve, the AVANTI™+ Introducer
provides smooth transitions, monitoring capabilities and exceptional performance for
your procedural success.
• A hexacuspid design that provides a balance between catheter maneuverability and
hemostasis.
• A rotating suture collar that facilitates greater procedural flexibility. It provides
position stability and allows more patient movement.
• A kink-resistant cannula design integrating a soft, flexible inner layer with a stiffer
outer layer for improved bendability and support. It is also less prone to kinking,
cost-effective and reliable.
• Atraumatic tip transitions for both the sheath and the vessel dilator are uniquely
tapered and manicured. This results in smooth insertions and may help lessen damage
upon entry.

AVANTI™ + STANDARD SHEATH INTRODUCER
• Sheath assembly
• Flexible and kink-resistant cannula
•  Side port extension with 3-way stopcock
• Flexible dilator
• Units per Package: 5

AVANTI™ + VALVELESS PORTLESS SHEATH INTRODUCER WITH MINI-GUIDEWIRE
• Valveless-Portless
• Sheath assembly with female Luer connector hub, 45 cm mini-guidewire and tapered vessel dilator
• 11 cm usable cannula length
• 17 cm usable guidewire length
• Straight
• Units per Package: 5

RAILWAY Sheathless Access System

The RAILWAY™ Sheathless Access System is indicated for use in radial arterial procedures requiring
percutaneous introduction of intravascular devices.
This Cordis device enables direct access to the radial artery with a guiding catheter and eliminates the need
for an introducer sheath, which reduces the size of the arterial puncture site up to 2F compared to a
conventional sheath system.
RAILWAY™ Sheathless Access System is compatible with Cordis 5F, 6F and 7F Guiding Catheters of any
shape, including dedicated radial shapes.
The device is optimized to fit either Cordis VISTA BRITE TIP™ or Cordis ADROIT™ Catheters with smooth
transitions from guidewire to dilator and dilator to guiding catheter.

7F HIGHFLOW™ Diagnostic Catheters
• Two segment braided polyurethane construction
QUICK CARE 4F INFINITI™ Diagnostic Catheters
• Smaller puncture site
• Three segment nylon construction with braided body improves kink resistance
• Soft radiopaque tip allows atraumatic cannulation and provides enhanced visibility
• Thin wall design enables larger lumen and optimal contrast flow
• True lumen technology ensures consistent ID from hub to tip
SUPERTORQUE™ Diagnostic Catheters
• two segment polyurethane construction with braided body

INFINITI™ Diagnostic Catheters
• Three segment nylon construction with braided body improves kink resistance and
minimizes whip
• Soft radiopaque tip allows atraumatic cannulation and provides enhanced visibility
• Thin wall design enables larger lumen and optimal contrast flow
• TRUELUMEN technology ensures consistent ID from hub to tip
SUPERTORQUE™ Plus Diagnostic Catheters
• Three segment polyurethane construction with braided body improves kink resistance
and minimizes whip
• Soft radiopaque tip allows atraumatic cannulation and provides enhanced visibility.

Standard BIOPSY FORCEPS
• Choice of two sizes of forceps diameter for taking samples adapted to a wide range
of clinical situations
– 2.46 mm3 of tissue sample using the 5.5F forceps
– 5.20 mm3 of tissue sample using the 7F forceps
• Internal Jugular or femoral access possible with two lengths of forceps
BIPAL™ Biopsy Forceps
• Disposable and Torquable (PTFE formable/torquable shaft)
– 5.03mm³ of tissue sample using the 7F forceps
• Internal Jugular or femoral access possible with two lengths of forceps
• Quicker and easier tissue sampling
• Larger size tissue samples to improve pathological examination

High Pressure INJECTOR LINES 1200 PSI – NON-BRAIDED

• Non-braided
• Ideal for all power injector applications, offered in a variety of lengths
• Available with or without High-Pressure Rotating Adaptor
• Contents per case: 25

HP INJECTOR LINES 1200 PSI – BRAIDED

• Braided
• Combines the high pressure capacity with superior flexibility
• Available with or without High-Pressure Rotating Adaptor
• Contents per case: 25

CATHETER EXTENSIONS
• Flexible, translucent polyurethane
• Braided
• Designed for 1000 psi
• Luer lock hubs
• Male-female
• 5 units per package

VALVES & HAEMOSTATIC Y-CONNECTORS

• Available for different wire diameters

• Smooth turning Tuohy-Borst valve
• With rotating adaptor
• Available as a PTCA valve accessory kit with either a
tool or a puncture device and a torque device

PRESSURE MONITORING LINE

• Clear and high durometer for accurate measurements and optimum dynamic response

Manifolds 550 PSI

manifolds are made from high quality, clear polycarbonate plastic.  They are available in 550 PSI pressure ratings.

CONTROL SYRINGES

• Smooth operation
• Clear, glass-like polycarbonate for complete clarity
• Stopper has 0.5ml reservoir
• Multiple plunger styles

EMERALD™ GUIDEWIRES

Intended for use in the percutaneous introduction of catheters.
PTFE pre-coated guidewire:
• uniform surface finish
• lower insertion and withdrawal force.

EMERALD™ ROSEN HEAVY DUTY GUIDEWIRES
• For percutaneous entry and guidance of angiographic catheters
• Intermediate level of body stiffness
• Highly atraumatic tip
• Maintains purchase in short vessel segments
• Units per Package: 5

EMERALD™ STANDARD J-TIP GUIDEWIRES
• For Biopsy Forceps procedures
• Fixed Core
• Units per Package: 5

Product Benefits:
Easy navigation
• Versatility of tip shapes and flexibilities
• Enhanced maneuverability
• Finger straighten-ability
Safety features
• Solid tensile strength minimizes the likelihood of stretching or fracturing
• Safety ribbon is welded to both ends of the wire to help it remain intact in
the event of a fracture or stretching.

AQUATRACK™
Hydrophilic Coated Guidewires

Intended for use in angiographic procedures to introduce and position catheters and
interventional devices within the peripheral vasculature.
AQUATRACK™ Hydrophilic Nitinol Guidewires have not been tested for safety under
MRI and in MRI guided interventions and therefore are not recommended for use
under MRI.
Regular and stiff hydrophilic wires for access and interventional procedures:
• facilitates handling in the wire
• providing the control, visibility and exceptional design symmetry
• enables to torque and maneuver through difficult lesions.

AQUATRACK™ Hydrophilic Coated Guidewires
• Guidewire OD: .035”
• Nitinol core wire
• Photolink™ Hydrophilic Coating
• Torque device included

Product Benefits:
Easy navigation
• Good turn-for-turn responsiveness
• leading to multivessel selection and lesion crossability
Greater visibility
• Good radiopacity can help promote faster and more accurate procedures
Lasting lubricity
• Access with excellent guide and device support, with a smooth ride from start to finish
